Surpass Hobby RC Brushless Motor ESC Combo Waterproof M3650 4500KV Brushless Motor and 60A ESC Combo Set for 1/10 Remote Control Cars Trucks Off-Road Vehicle

Surpass Hobby RC Brushless Motor ESC Combo Waterproof M3650 4500KV Brushless Motor and 60 A ESC Combo Set for 1/10 Remote Control Cars Trucks Off-Road Vehicle FEATURE: M3650 Brushless Motor 1. Fits all 1/10th scale RC cars,motor mounting screws are 6 of 3 screw holes 2.High hardness aluminum CNC case,0.35mm stator.3.High Purity High temperature resistance Copper Windings Maximizes Efficiency .4.High precision and high quality ABEC5 large bearing, smooth and wear-resistant.5.Removable/replaceable explosion-proof high-precision balancing rotor.6.4 Pole 12 Slot Hi-torque rotor design,stable output power.Specifications:Watts: 900WMax voltage: <11.1V Max Amps: 81AKV(RPM/Volt): 4500KVMax RPM: 50000Plug type: 4mm golden banana plugShaft length: 15mmShaft diameter: 3.175mmDiameter: 36mmLength: 50mmWeight: 185g60A Brushless ESC 1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)2.Specially designed for RC car with excellent start-up, acceleration and linearity features.3.Compatible with sensorless brushless motor.4.The strong resistant current capability,excellent heat dissipation.5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery /Throttle signal loss protection / Motor blocked protection.6.Low voltage cut-off protection the motor emits"Beep-Beep" and the LED flashes.7.Built-in switch-mode BEC 5.3V/2A (M35A Built-in analog-mode BEC 5V/2A) for usage with high torque and high voltage servos. 8. Easily programmed and compatible with pocket-sized program card. Specifications:Cont/Burst Current: 35A/320AMotor Type: Sensorless brushless motorResistance: 0.0007ohmBattery: 2-3cells Lipo/ 4-9cells NiMHBEC Output: 5.3V/2A(Switch mode)Diamension:42.5X 29 X 30mm (1.67 x 1.14 x 1.18in)WARNINGS: 1.Before using , Ensure that the power system is reasonable. Unreasonable power matching will cause the motor to be damaged due to overload.2.Do not over tighten the screws when installing the motor. Be sure to use the appropriate mountings crews.3.Before connecting the motor, Ensure that The insulated parts are well treated, Short circuit will destroy the product.

• Sutable for 1/10 RC Car: Our M3650 Brushless motor designed for 1/10 RC cars with the motor mounting screws are 6 of M3 screw holes such as on-road car /off-road/ buggy/ monster, cool black appearance; It's made of Highhardness aluminum CNC machined heat sink and excellent heat dissipation; with excellent start-up,acceleration and linearity features, strong resistant current capability.
• Waterproof & Dustproof Design : Surpass Hobby M3650 brushless motor and 60A brushless ESC which is waterproof and dustproof for all weather races. allowing for RC car handling in various environments.

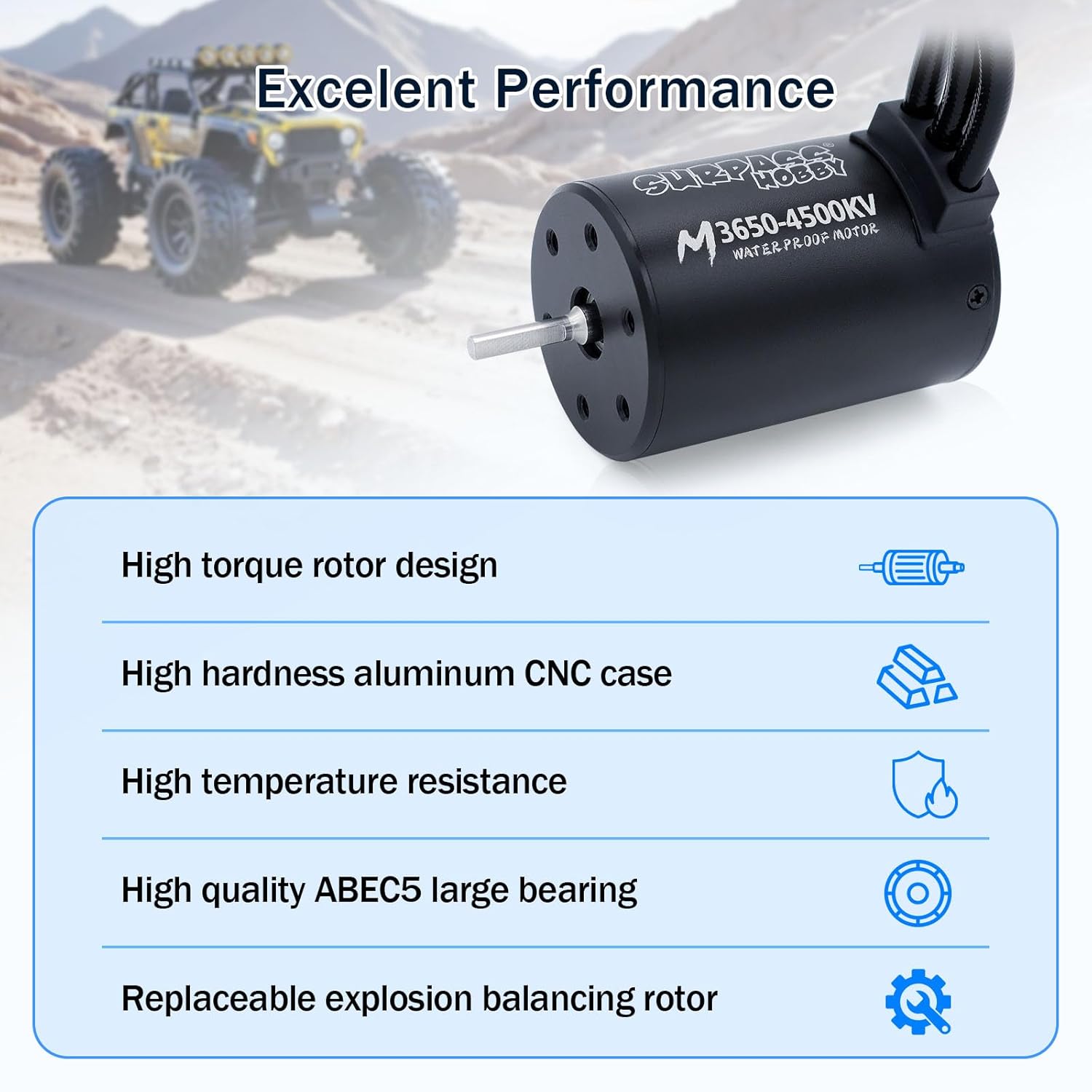

• Upgrade Materials： These hobby brushless motor cover is made of high hardness CNC aluminum and 0.35mm thickness silicon steel sheet. The high purity and high temperature resistant copper coil effectively provides high efficiency, while the ABEC5 high-precision large bearings offer smooth and wear-resistant operation

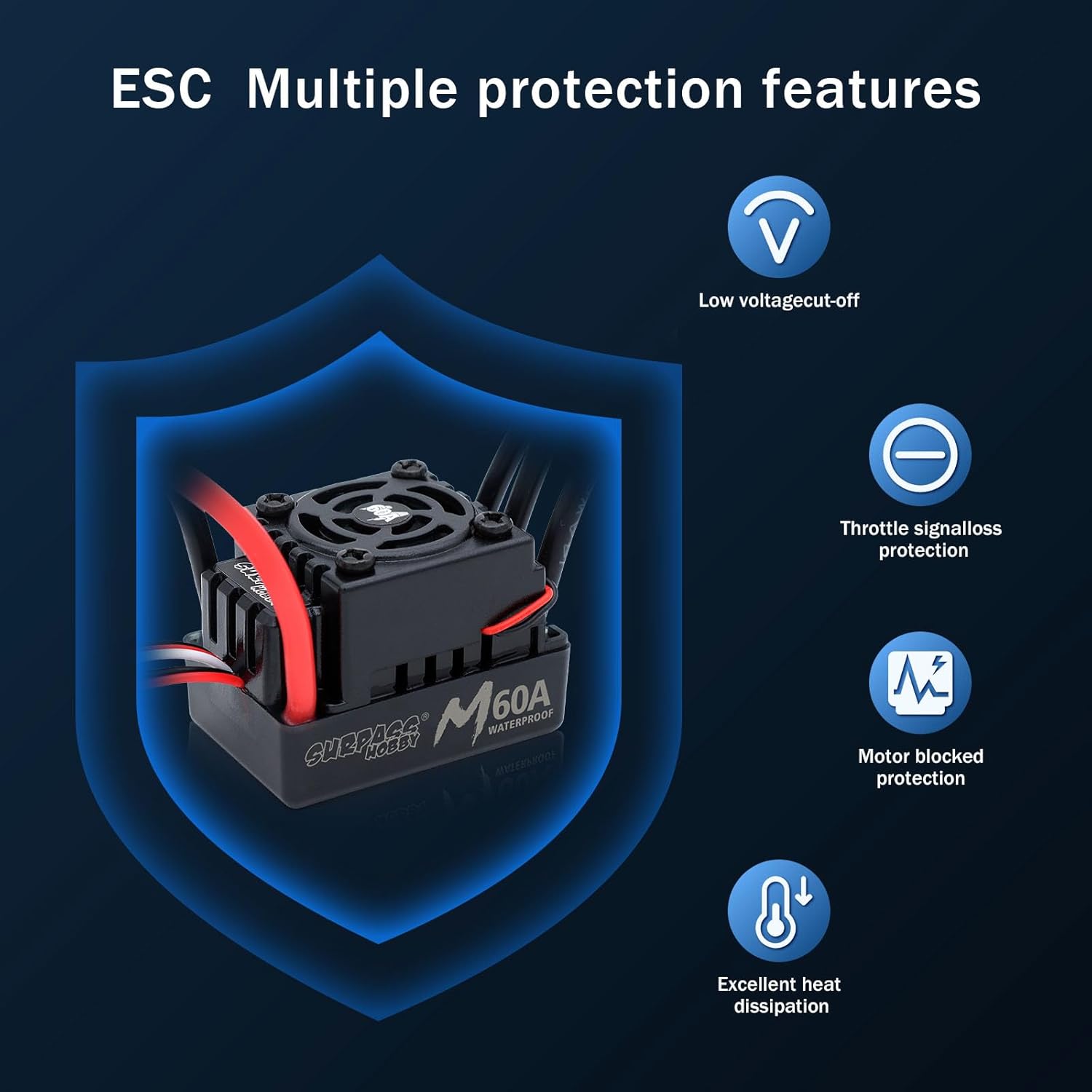

• Multiple Protection: Our M3650 Series brushless motor and 60A ESC set with multiple protection,such as low voltage cut-off protection for lithium or nickel battery,over-heat protection, throttle signal loss protection and motor blocked protection.along with strong current resistance and excellent heat dissipation. When protecting the motor, the LED light will flash and there will be a buzzer sound
• Notice for Use: Waterproof 60A ESC built with high quality components to ensure high efficiency operation, it works prefectly with 2S lipo battery. if your car works with 3-4S battery, you can choose 120-150A ESC. Please read the instructions carefully before use.
