PAPUGA 200PCS 12-10 AWG (4-6 mm2) #6 / M3.5 Insulated Fork Spade Crimp Connector, 600V 48A, CE RoHS Battery Cable Lug Heavy Duty Crimp Connector, Appliance & HVAC
4.6 (123 items)
Limited Time Sale$18.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211025854 | Release Date | 2026/04/04 | List Price | $12.40 | Model Number | 211025854 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PAPUGA 12–10 AWG (4–6 mm2) Insulated Fork (Spade) Crimp Connector Electrical Rating: 600V / 48A Max | Compliance: CE & RoHS Compliant Bolt Size: #6 / M3.5 This 12–10 AWG insulated fork connector is designed for secure, reliable electrical connections in automotive, marine, industrial, and general wiring applications. The fork design allows installation and removal without fully removing the screw or bolt, simplifying maintenance and upgrades. Manufactured from Tin-Plated Copper, this connector provides stable conductivity and corrosion resistance. It is intended for use with 12–10 AWG stranded copper wire only and is rated for up to 48A at 600V when properly crimped. The connector features durable Yellow PVC Vinyl (75C) to help reduce short circuits, vibration, and abrasion. The insulation may be removed if required for certain installations. Crimping Instructions (Important): With insulation installed, use a crimping tool designed for insulated terminals If insulation is removed, use a crimping tool designed for bare (non-insulated) terminals Always disconnect power before installation and perform a pull test after crimping. Common Applications: Control panels, automotive wiring, marine electrical systems, power supplies, grounding connections, household electrical projects, and industrial machinery.Fit & Installation Note: Before ordering, confirm the selected wire gauge and connection size match your application. Designed for stranded copper wire and proper crimping tools only.✔ FIT & USE CONFIRMATION Matches the selected wire gauge and connector size shown above Designed for stranded wire and proper crimping tools Disconnect power before installation for safety
- WIRE SIZE: Fits 12-10 AWG (4-6 mm2) stranded wire.
- FORK SIZE: Fits #6 screw terminals.
- MATERIAL: Tin plated copper for corrosion resistance and reliable conductivity.
- EASY INSTALL: Fork design allows quick attachment and removal without fully removing the screw.
- INSTALLATION: Can be crimped with insulated-terminal tools, or insulation may be removed for use with non-insulated crimpers. Disconnect power before working.
| Color | Yellow |
|---|---|
| Gauge | 10 |
| Model | SV5.5-3.5 |
| Terminal | Spade Terminal |
| Stud Size | #6, 3.5mm, M3.5 |
| Brand Name | Generic |
| Unit Count | 1.0 Count |
| Manufacturer | Zhejiang Niuli Electric Co., Ltd. |
| Material Type | Copper, Polyvinyl Chloride |
| Connector Type | Fork, Spade |
| Maximum Voltage | 600 Volts |
| Contact Material | Plated Tin |
| Specification Met | CE, RoHS |
| Temperature Rating | 75°C |
| Included Components | 200 × 12-10 AWG insulated fork spade crimp connectors (#6 / M3.5) |
| Insulation Material Type | Polyvinyl Chloride |

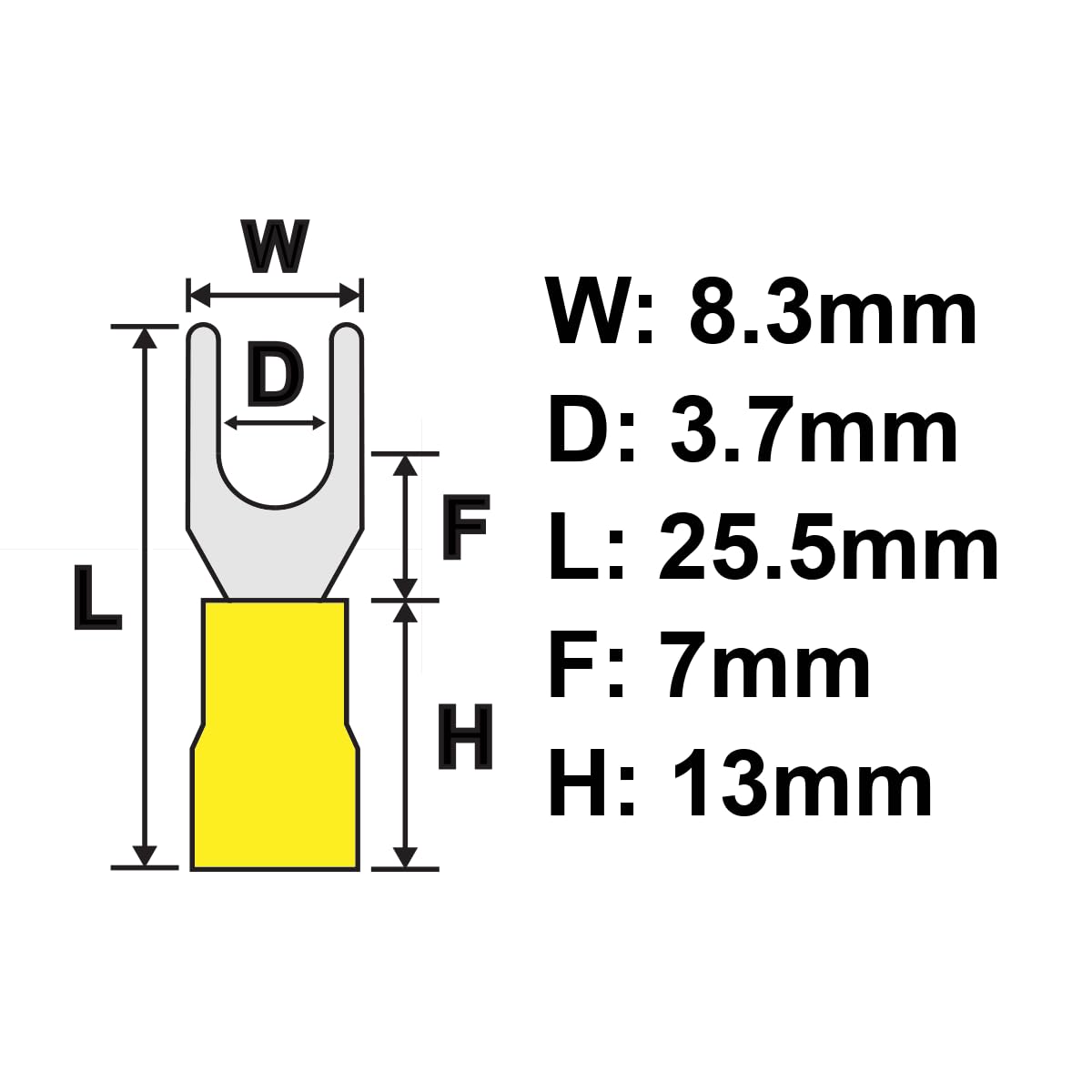

| Item Dimensions L x W x H | 1"L x 0.33"W x 0.26"H |
