JMT ADT-F9G F4C F4Q OcuLink SFF-8612 to M.2 NVMe/PCIe X16 Extension Card PCIe4.0 / PCIe5.0 External Graphics Card Adapter (ADT-F4C)

JMT ADT-F9G F4C F4Q OcuLink SFF-8612 to M.2 NVMe / PCIe X16 Extension Card PCIe4.0 64Gbps External Graphics Card Adapter Product Detail: Product Model: F9G , F4C, F4Q Product Name: OcuLink SFF-8612 to M.2 NVMe / PCIe X16 Extension Card Bandwidth speed: F4C and F9G PCIe 4.0 x4, 64Gbps. F4Q Pcie5.0 X4 128Gbps. Product use: for graphics card external or other PCIe devices Product Description: Oculink is an interface that is adapted from the NVME SSD slot on the motherboard of the computer, NVME takes the pure PCIe channel, so the Oculink external graphics docking station also takes the PCIe channel, which has a small performance loss. Compared to traditional Thunder bolt-compatible adapter solutions, Oculink's effective bandwidth can reach 64Gbps under PCIe 4.0 x4, far exceeding Thunder bolt-compatible solutions. Friendly reminder: OcuLink does not support hot-swap Power supply: Support standard ATX 500W power supply, power supply needs to be prepared by the buyer. Purchasing tips: Be sure to buy 1~2 samples to test and verify that there is no error before purchasing large quantities. The switch on the F9G: Switch toggle to 1 is auto-start, you can follow the startup; toggle to 2 is forced startup, directly powering the graphics card docking station, which is risky, toggle to 1 auto-start can be enough. D1 light represents cable detection, some cables will cause the D1 light does not light. D2 light represents the power supply status of the docking station, light means that the docking station is in the startup state. D3 light may not light up when using some AMD-compatible graphics cards. D4 light is off under normal conditions, only in the opening and closing will blink a little.

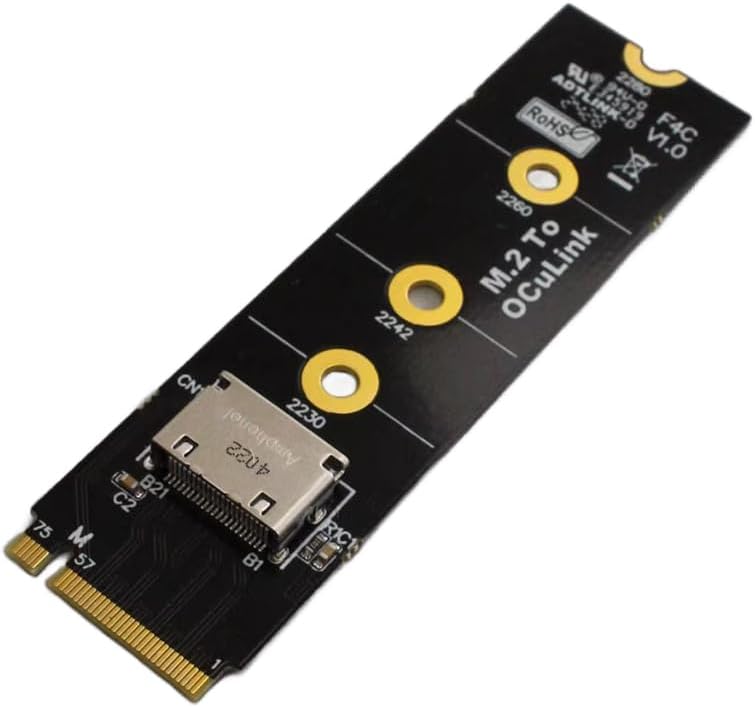

• F4C: OCuLink SFF-8612 Female to M.2 NVMe Adapter card, no chip. Bandwidth Pcie4.0 X4 64Gbps.
• F4Q: OCuLink SFF-8612 Female to M.2 NVMe Adapter card, comes with chip. Bandwidth Pcie5.0 X4 128Gbps. Adopting PCIe Redriver signal repeater IC, this chip can regenerate the signal and enhance its signal quality. Reduces the incidence of signaling errors.
• F9G: OCuLink SFF-8612 Female to PCIe x16 Docking Adapter card. Bandwidth Pcie4.0 X4 64Gbps.
• Support M.2 NVMe Interface: In addition to notebooks, This Docking Station also Compatible with In·tel NUC motherboards, STX motherboards, ITX motherboards, graphics cards external, with M.2 NVMe interface can be used.
• Excellent SI Performance: Signal rates up to PCIe4 16GT/s and SAS 4.0 24Gbps. Support cable to board application, pitch 0.5mm connector. Supports 85 ohm impedance applications, 100 ohm is available on request.
